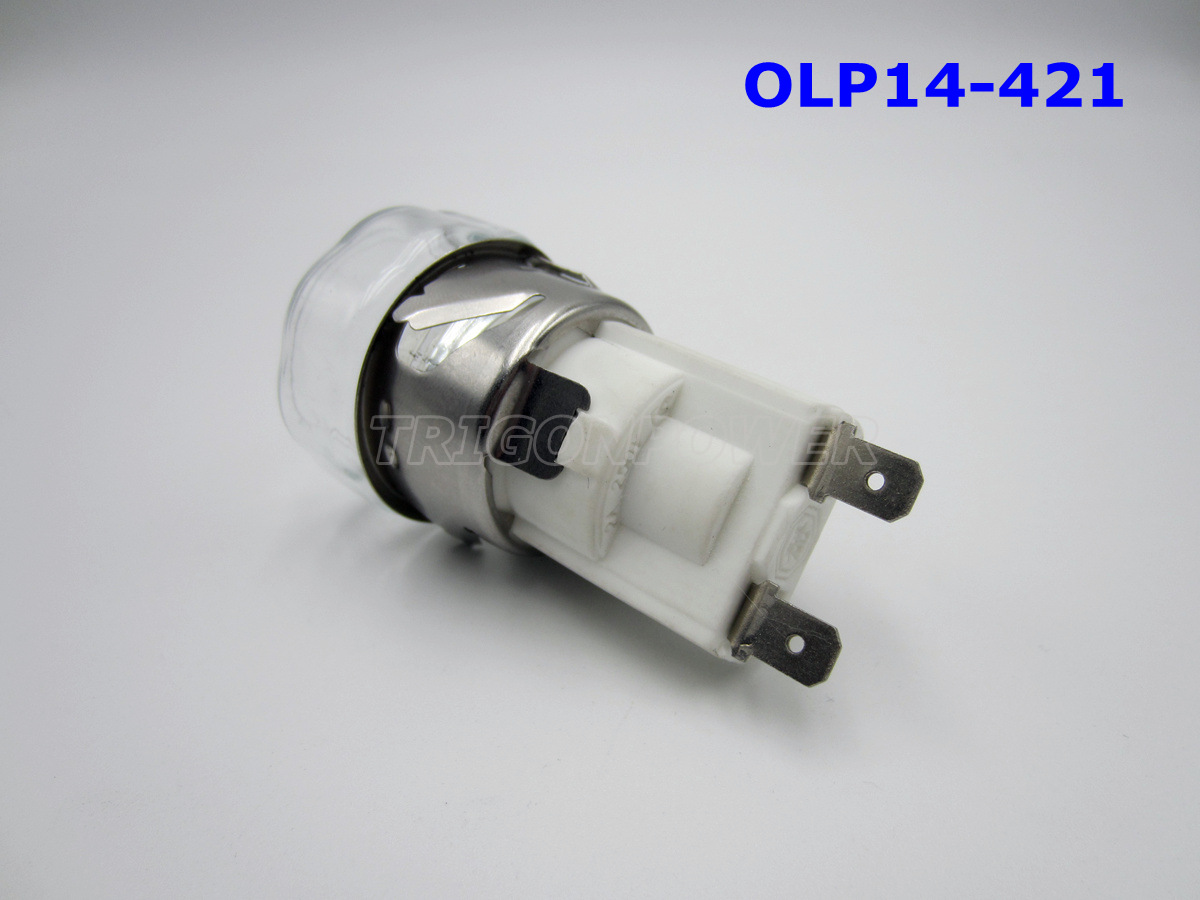

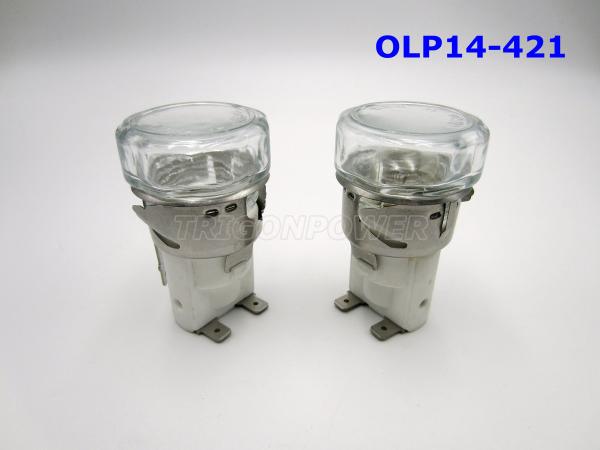

Galvanized steel Oven Lamp Holder OLP14-421 Faston 6.3x 0.8
Description:
The oven lamp is composed by glass cover, lamp holder, fixing ring,
terminal, G9 metallic
ring and G9 lamp bulb etc. 6 parts. Below table shows the fusion
point information for these parts’ raw material. According to these
information, we known that all the raw material are good high
temperature resistant material. And the G9 bulb is a kind of
halogen lamp bulb, and the halogen lamp is a kind of lamp with more
than 400 degrees centigrade temperature resistant properties. So it
is no problem that this kind oven lamp work well under the 300
degrees centigrade. With our test datas, this kind oven lamp could
operate stably under the 400 degrees centigrade conditions.
Specifications:
| ITEM | INFORMATION | NOTE |
| TYPE | E14 STANDARD | |
| NOMINAL VOLTAGE | AC 250V | BY TUV |
| NOMINAL CURRENTS | 2A | BY TUV |
| WORKING VOLTAGE | AC 110~220V 50/60 Hz | |
| VOLTAGE RESISTANCE | > AC 450V | |
| LIGHTING POWER | 15w / 25w | |
| WORKING TEMP. | T300 | |
| WORKING LIFE | > 1000 hours | Under T300 |
| TERMINAL |
| RAW MATERIAL | Galvanized steel / stainless steel / copper | |
| SIZE | Faston 6.3x 0.8 | |
| GLASS COVER |
| RAW MATERIAL | soda-lime / high borosilicate glass | |
| APPERANCE | hemisphere shape | |
| SIZE | OD = 41 mm | |
| COLOR | full transparent | |
| LAMP HOLDER |
| RAW MATERIAL | high frequency porcelain | |
| COLOR | bright white | |
Application:
Electrical and standard ovens, microwave oven and similar places
subject to medium operating temperatures. Available for these
equipment luminaires fitted in different positions such as
downlighter, side-light and backlight.
Advantages:
Good electrical properties (insulation & conductivity)
The glass and porcelain are the good insulation material for
electrical products, our oven lamp’s max voltage resistance value
is more than AC 450V. So the good insulating property could ensure
the user’s safety. And the copper and steel are all the good
conductor material which could ensure that the lamp could work
well.
Long working lifetime
We use the best raw materials and technologies to manufacture the
parts for oven lamp products. For example:
1) We use the best tungsten filament and the best sealing material
in the market to manufacture the lamp bulbs.
2) The glass cover must through the glass tempering process
increase it’s strength.
3) The lamp holder also need several exclusive processes, such as
continuous forming, aging treatment and super high temperature
sintering, to ensure it’s hardness.
Such these reliable production control measures could guarantee the
oven lamp with stable quality and long lifetime services.
